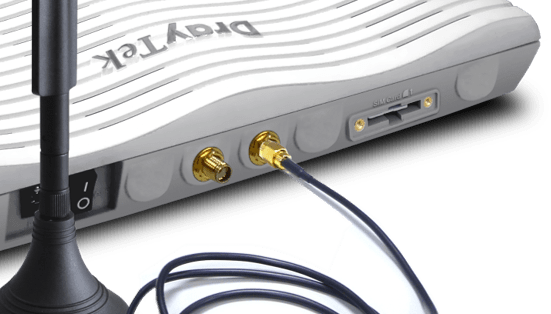

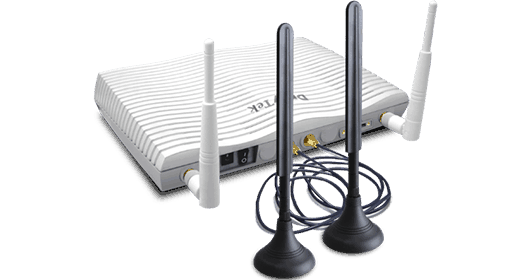

On the back of Vigor2862L, there is one standard-sized SIM slot, protected with a cover which needs a screwdriver to remove, and two detachable LTE antenna with magnetic base and 1-meter extension cable to give the optimal antenna deployment and get the best reception.

The Vigor2862L series includes models with built-in 802.11ac Wave2 Wi-Fi which delivers wireless speed up to 1.7 Gbps on the 5GHz band.

The DrayTek 2862 Quad-WAN VDSL/ADSL2+ Broadband Router is a flagship router/firewall which supports both ADSL or VDSL (BT Infinity/FTTC) and is packed with professional level features to increase security, flexibility and functionality, making it ideal as your standard router for almost any scenario. This DrayTek 2862 Broadband Router includes support for other professional features such as VLAN tagging, QoS (Quality of Service Assurance), High Availability, DNS Filter, Policy Based Routing, and User Access Control. If you deploy DrayTek Wireless Access Points, the DrayTek 2862 Quad-WAN VDSL/ADSL2+ Broadband Router can act as the Central Management controller.

• Supports VDSL2, ADSL, 3G/4G and Ethernet-based Broadband.
• 4-WAN Simultaneous: VDSL/ADSL, Ethernet and dual optional USB 3G/4G.
• Rack mounting kit not included.
• DrayTek Firewall with huge flexibility.
• High Availability (Hardware failover).
• 5-Port Gigabit Ethernet LAN Switch.
• Up to 8 Private LAN Subnets.
• Larger Subnets - up to 1022 IPs per subnet (LAN1-3).
• Temperature Monitoring (thermometer sold separately).
• SMS/Text Message Alert.
• VLANs (Port, 802.1q).
• Content Filtering (by keyword, data type or category).
• GlobalView Web Filtering (see compatible licence in accessories tab)
• Internal RADIUS Server.
• LDAP Integration for VPN and user access.
• QoS (Layer 2 and 3, 802.1p and TOS/DCSP).
• Up to 32 VPN tunnels for LAN-to-LAN or teleworkers.
• VPN Trunk/Backup to remote sites.
• SSL VPN - Tunnel or Proxy (16 users).
• USB Port for Printer, memory stick or 3G/4G/LTE Modem

The DrayTek 2862 Quad-WAN VDSL/ADSL2+ Broadband Router's built in DSL interface will connect to either an ADSL or VDSL2 line. If you have a second line (of either type) you can add an additional modem (or your existing modem from your other line) to the DrayTek 2862 Quad-WAN VDSL/ADSL2+ Broadband Router's Ethernet WAN ports. You can set the two lines up in load balancing mode, where traffic is split across both of them, or into failover mode, where the other DSL line only kicks-in if your primary DSL line fails (or vice versa). ADSL makes a particularly good method of failover for VDSL because they are delivered differently. VDSL service is provided and powered by a cabinet in your street - that's where the line terminates. ADSL service, on the other hand, comes all the way from your local exchange, which could be miles away and is powered from there. That means that if your street's VDSL cabinet is damaged, its DSLAM fails or you lose power to your street, you lose VDSL but your ADSL line comes via a different method and route, so it's less likely that both would be affected.

Security is always taken seriously with the DrayTek 2862 Quad-WAN VDSL/ADSL2+ Broadband Router. The firewall protects against attacks including DoS (Denial of Service) attacks, IP-based attacks and access by unauthorised remote systems. Wireless, Ethernet and VPN are also protected by various protection systems. The DrayTek object-based firewall allows even more setup flexibility than ever, enabling you to create combinations of users, rules and restrictions to suit multi-departmental organisations. The DrayTek 2862 Quad-WAN VDSL/ADSL2+ Broadband Router also allows selective direction firewall rules of LAN to WAN, WAN to LAN or LAN to VPN.

The DrayTek 2862 Quad-WAN VDSL/ADSL2+ Broadband Router supports IPv6, the successor to the current IPv4 addressing system that has been used since the Internet was first created. IPv4 address space is full up and IPv6 allows for much more efficient routing and a larger address space. IPv6 is supported both from your own ISP, but if your ISP does not (yet) support IPv6, the DrayTek 2862 Quad-WAN VDSL/ADSL2+ Broadband Router also supports IPv6 broker/tunnel services to provide IPv6 access using either TSPC or AICCU via 3rd party IPv6 providers.

The content control features of the DrayTek 2862 Quad-WAN VDSL/ADSL2+ Broadband Router allow you to set restrictions on web site access, blocking download of certain file or data types, blocking specific web sites with whitelists or blacklists, blocking IM/P2P applications or other potentially harmful or wasteful content. Restrictions can be per user, per PC or universal and according to time schedules. Content filtering can also block sites using HTTPS/SSL where URLs are encrypted (and normal routers cannot block). Using the GlobalView service, you can block whole categories of web sites (e.g. gambling, adult sites etc.), subject to an annual subscription. A free 30-day trial is included with this router; see accessories tab for compatible 1-year GlobalView licence.

The EssCable ES1 Rackmount Bracket (sold separately) is a 1U fixed rackmount bracket/shelf with lower rear support. It enables you to fit any Vigor 2862 series router into a standard 19" rack or cabinet. The bracket takes up one rack slot (1U) and allows the front mounted sockets of the router to remain fully accessible.

USB port for ad-hoc storage/logging

The DrayTek 2862 Quad-WAN VDSL/ADSL2+ Broadband Router's USB port can also be used to add storage memory to the unit in the form of a USB memory key. The Vigor 2862 then provides FTP access file uploading/downloading which can be from the local LAN or from anywhere on the Internet - ideal for a simple to deploy file depository. If you do have a USB memory key connected, you can also have the router save its system logs (syslog) to that memory instead of to a connecting computer - useful for technical personnel (SysAdmins). The DrayTek 2862 Quad-WAN VDSL/ADSL2+ Broadband Router has two USB ports.

A feature central to DrayTek routers is its VPN (Virtual Private Networking) capabilities. A VPN enables you to link remote offices and branch offices back to HQ, or home-based/mobile teleworkers back to your office. Once connected, they have access to your office/remote resources through a secure encrypted tunnel allowing remote desktop, file sharing and seamless access to other resources and devices. The DrayTek 2862 Quad-WAN VDSL/ADSL2+ Broadband Router allows you to have up to 32 simultaneous VPN tunnels to remote offices or teleworkers. It supports all common industry standard protocols, including encryption and authentication methods. Teleworkers can authenticate directly with your LDAP server if preferred.

The DrayTek 2862 Quad-WAN VDSL/ADSL2+ Broadband Router supports VPN trunking, which allows you to create tunnels down multiple WAN connections to a remote site in order to increase bandwidth. VPN trunking also provides failover (backup) of your VPN route down a secondary WAN connection. Teleworkers can also use 2FA (Two factor authentication) such as MOTP. The DrayTek 2862 Quad-WAN VDSL/ADSL2+ Broadband Router also supports SSL VPN. These are encrypted tunnels linking your teleworker back to your main office but they are 'client-less' in that your O/S does not need to generate the tunnel and you do not need to install any VPN software manually. You instigate an SSL tunnel from your regular web browser, so it could be in a web cafe or guest network, and the tunnel uses standard TLS / SSL security - the same encryption that you use for secure web sites such as your bank.

The DrayTek 2862 Quad-WAN VDSL/ADSL2+ Broadband Router can operate SSL VPNs in either Proxy or full tunnel mode and allows up to 16 simultaneous incoming users. For SSL VPN tunnel mode Windows OS, Mac OS X, Apple iOS and Android are supported. The SSL VPN server can additionally be used for site to site VPN tunnels, connecting branch offices to a main office across a TLS encrypted HTTPS tunnel, which can be more secure than PPTP and is simpler to configure than an IPsec VPN tunnel.
