Antenna for 3G/4G Routers
Most 4G routers have two or four antenna inputs that operate together and enable a faster connection than just one antenna due to Cross Polarised (MIMO)
smaller devices such as a 4G USB Dongle only has one small input for a single antenna
- - -
Poynting XPOL-2-5G Outdoor 4G/5G LTE (11dBi gain)
The Poynting XPOL-2-5G Outdoor 4G/5G LTE 11 dBi Cross Polarised Directional Panel Antenna is Poynting’s third generation "V3" of this Cross Polarised (XPOL), cellular band, 2x2 MIMO antenna. The antenna enclosure effectively looks the same as the second generation "V2", but has been completely redesigned on the inside. Poynting have used advanced metamaterial technology, making use of Artificial Magnetic Conductors (AMC) and new registered/patent pending radiator configuration, which is proving to yield exceptional improvements in bandwidth and gain. Radiation patterns of this antenna are exceptionally well controlled, further adding to the performance of the antenna.
- 2-3dB higher over all the bands compared to "V2".
- 3400MHz-3800MHz, 5G band with 11dBi gain.
- Broadband, including the latest 3.5GHz bands.
- X-Polarised 2x2 MIMO Antenna.
- Wall or pole mountable (Z-shaped bracket included, pole mount sold separately).
- Lightweight & Rugged.
- Weatherproof & waterproof (IP65).
- High pattern consistency across bands for 4G/5G carrier aggregation.
The XPOL-2-5G antenna includes the 3400 - 3800 MHz bands, which were not previously covered by the "V2" and is suitable for 2G, 3G, 4G & 5G. This antenna performs exceptionally well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition to the new bands, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the "V2" over the same frequency bands!
- - -

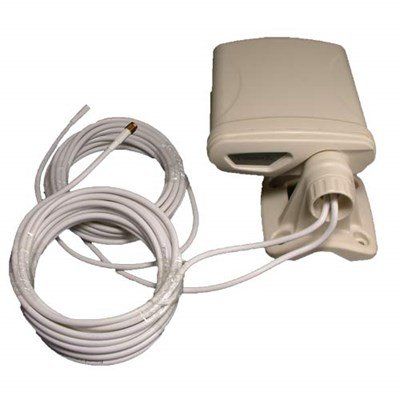

Poynting XPOL-1 Outdoor 3G/4G LTE Antenna (2dBi gain)
The Poynting XPOL-1 antenna provides an innovative and future proof solution for 4G / 3G and 2G networks. It is a unique window, wall or pole mountable, dual polarised, full LTE band omnidirectional antenna. Incorporating two separately fed ultra wideband elements in a single housing, the antenna is equipped to provide client side MiMo and diversity support for the networks of today and tomorrow. Gain is min. 2 dBi across all bands: 790 - 960, 1710 - 2170, 2300-2400 and 2500 - 2700 MHz
- Min. 2 dBi Gain across all bands
- Dual Polarised, full LTE band Omni Directional Antenna for outdoor use
- Window, Wall or Pole mountable
- Frequency Range - 790~960, 1710~2170, 2300~2400 and 2500~2700 MHz bands
- 2 x 5 metre cables included
The weatherproof housing is designed for window, mast and wall mounting. The antenna has 2 x 5 metres of low loss cable. This is a cost effective value added product for signal enhancement and ensures higher throughputs and stable links for subscribers. This will improve subscribers' user experience and improve client retention. It is ideal for any applications using the GSM network (LTE/HSPA/3G/EDGE/GPRS).
Product Specifications
Gain
2.5 dBi (Nominal)
Input Frequency790 - 960, 1710 - 2170, 2300 - 2400 and 2500 - 2700 MHz Bands
VSWR across operating bands < 2.5:1
VSWR across operating bands < 2.5:1
Feed power handling 4W
Input impedance 50 Ohm (nominal)
Polarisation 2 x Linear (Vertical and Horizontal)
Cable 2 x 5m HDF 195
Connector 2 x S MA plug
Mounting
Window, wall or pole
Dimensions 234 x 134 x 84 mm
- - -
